4IPNET OWL530 Outdoor Access Point

4IPNET OWL530 Outdoor Access Point

15,600.00 Php 15600.0 PHP

15,600.00 Php

Add to Cart

       4ipnet OWL530 is an enterprise-grade, dual-band 802.11n outdoor access point, designed specifically to withstand harsh weather conditions in outdoor and industrial environments. Featuring a 2x2 MIMO radio that can support up to 300 Mbps data rate, the OWL530 is ideal for providing wire-like performance that is crucial for businesses. Traffic prioritization ensures that bandwidth hungry applications such as HD videos can stream perfectly, while enforcing strict QoS requirements for VoIP and mission critical services.

Odoo image and text block

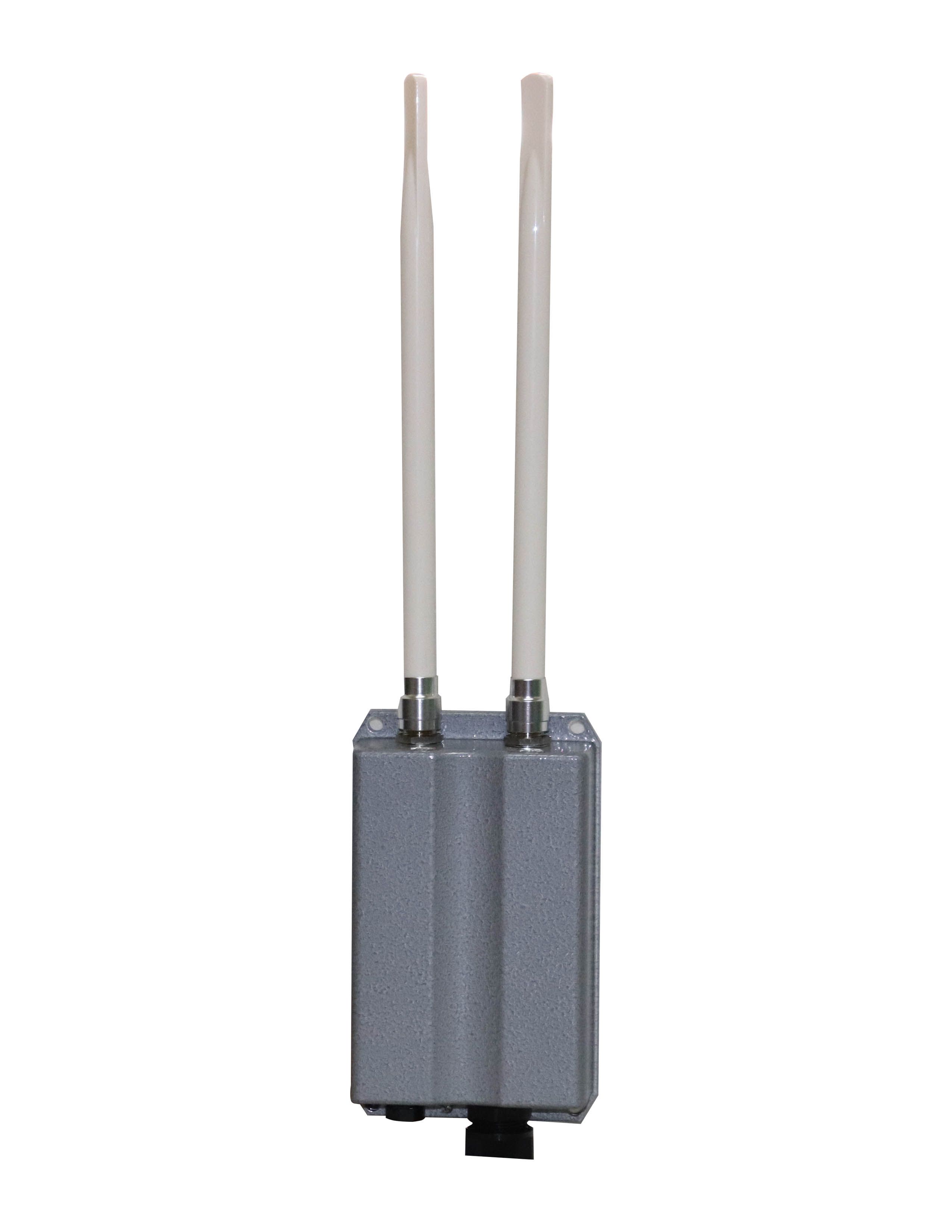

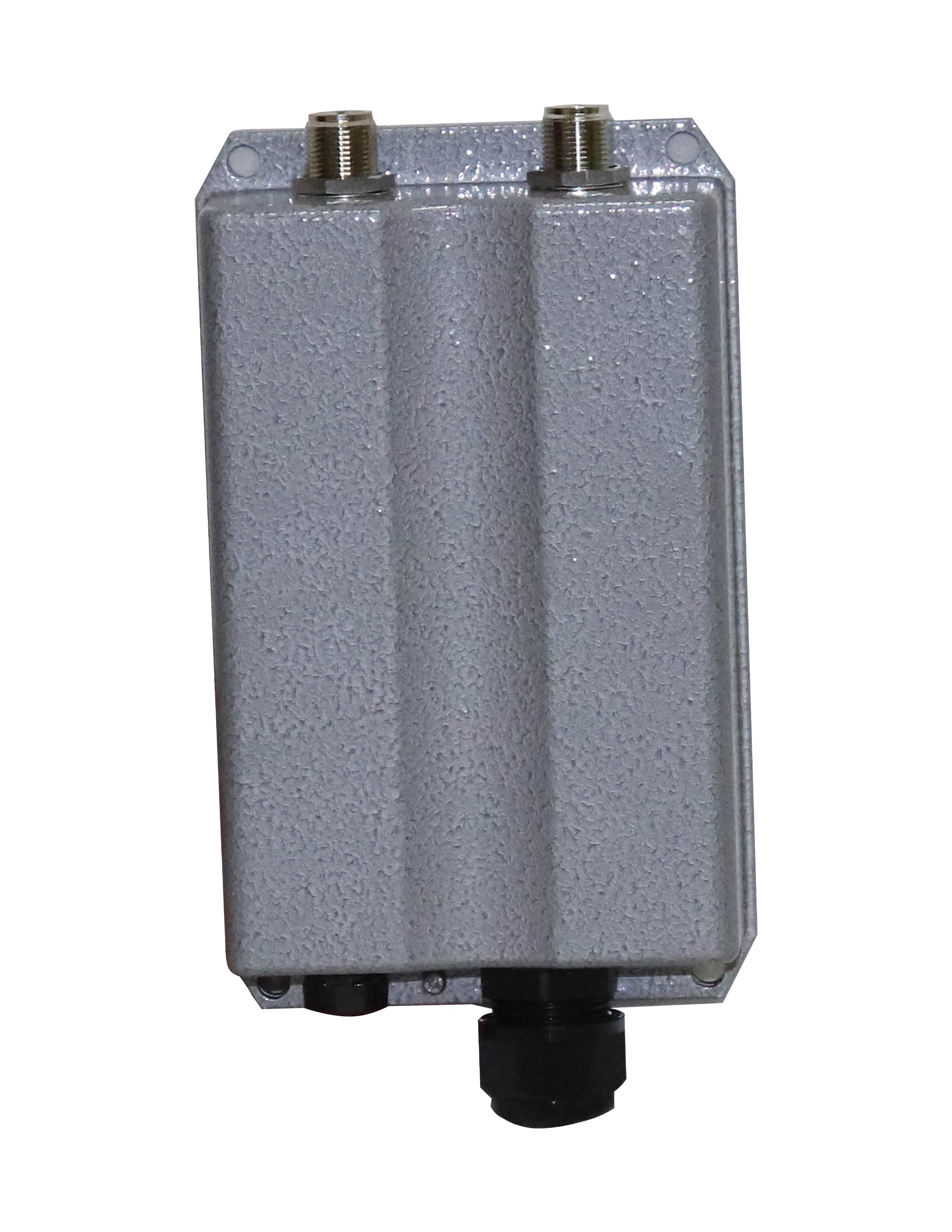

OWL530 Outdoor Access Point

 Key features:

1. Outdoor AP IP68 rating heavy-duty metal enclosure

2. Dual-band 802.11a/b/g/n, 2x2 MIMO, up to 300Mbps

3. Gigabit port with 802.3af PoE support

4. Operating modes: AP, WDS, CPE, Universal Repeater

5. Layer2/Layer3 fast roaming

6. Enterprise-grade standards-based wireless security

7. 16 ESSIDs with 802.1Q VLAN

8. 2 x N-type connectors for external antennas

9. Ideal last-mile solution for ISP(WISPs) for outdoor deployment

SPECIFICATIONS

PHYSICAL

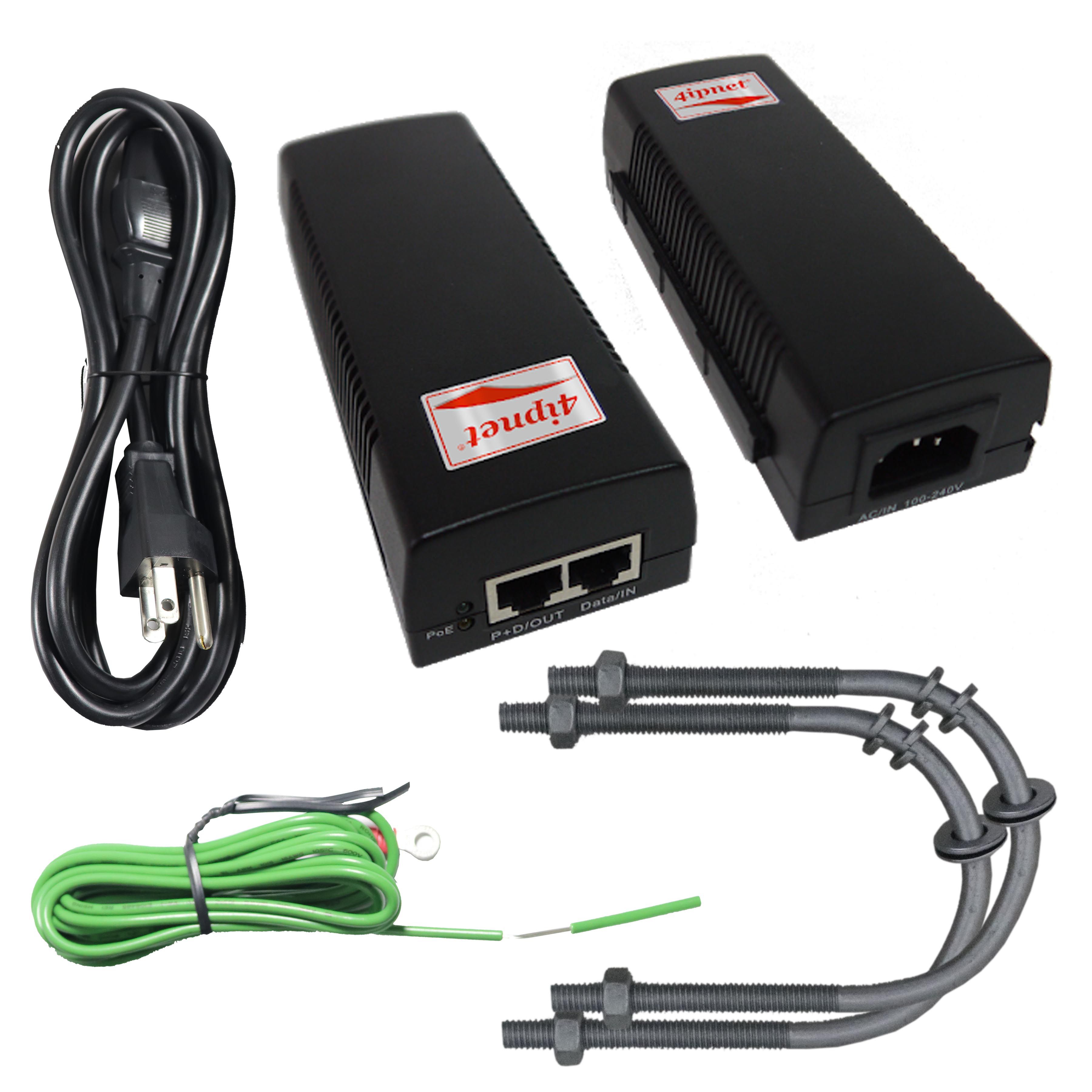

Power• PoE: 802.3af compliant (PoE injector optional)
Dimensions• 18.2 cm (L) x 11.1 cm (W)
Weight• 0.90 kg (1.98 lbs)
Interfaces• Uplink: 1 x 10/100/1000Base-T Ethernet, Auto MDIX, RJ-45 with 802.3af  PoE
Environmental Conditions• Operating Temperature: -30C (-22F) to 70C (158F)• Operating Humidity: 10% to 90% non-condensing• IP68 Rating
Power Consumption• 12W max
Antenna• Type: 2 x External N-type connectors
Mounting• Pole/wall mount (Mounting kit included)

 WIFI

Standards• 802.11 a/b/g/n • Selectable dual-band 2.4/5 GHz

Supported Data Rates
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n: 6.5 – 144.4 Mbps (20 MHz), 13.5 – 300 Mbps (40 MHz)
Radio Chains• 2 x 2
Spartial Streams• 2
Output Power• 2.412 – 2.472 GHz • 5.180 – 5.825 GHz
Operating Channels• 2.4 GHz: 1 – 11 (US), 1 – 13 (Europe), 1 – 13 (Japan) • 5 GHz*2: 36 – 165 (US), 36 – 140 (Europe), 100 – 140 (Japan)
ESSIDs• Up to 16
Opeating Modes• AP Mode • WDS Mode • CPE Mode • Universal Repeater Mode
CPE Mode Features• Built-in NAT functionality • Built-in DHCP server • Uplink/downlink bandwidth management • IP/Port forwarding and DMZ • Built-in DNS/DDNS client
Certifications• FCC (United States), CE (Europe) • RoHS compliant

PERFORMANCE

Physical Data Rate• Up to 300 mbps
Concurrent Users• Up to 256
