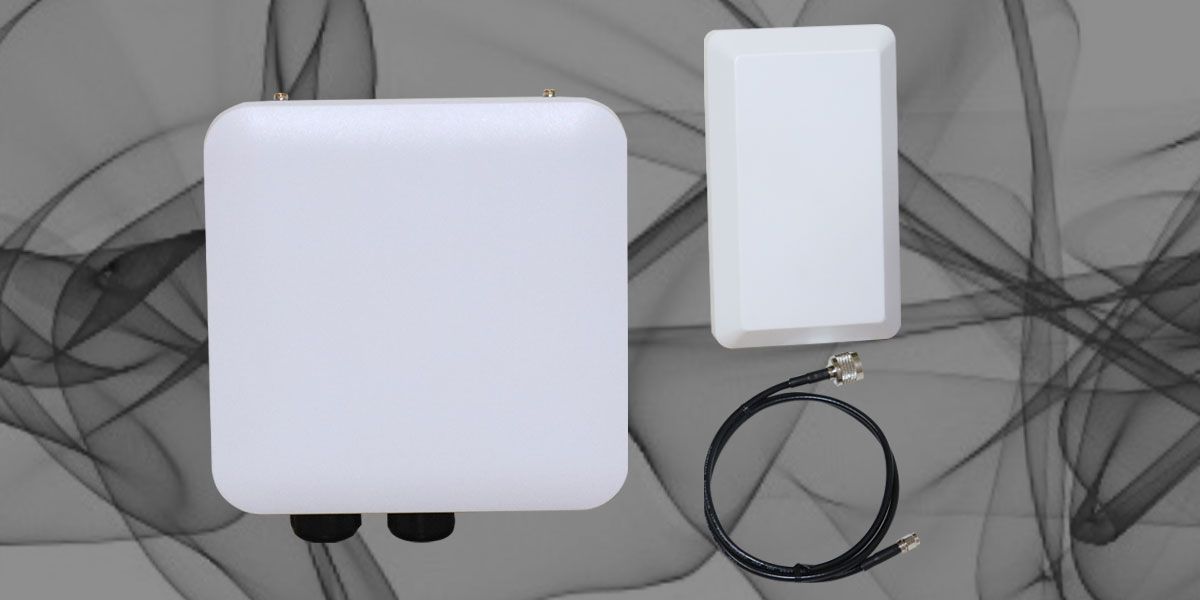

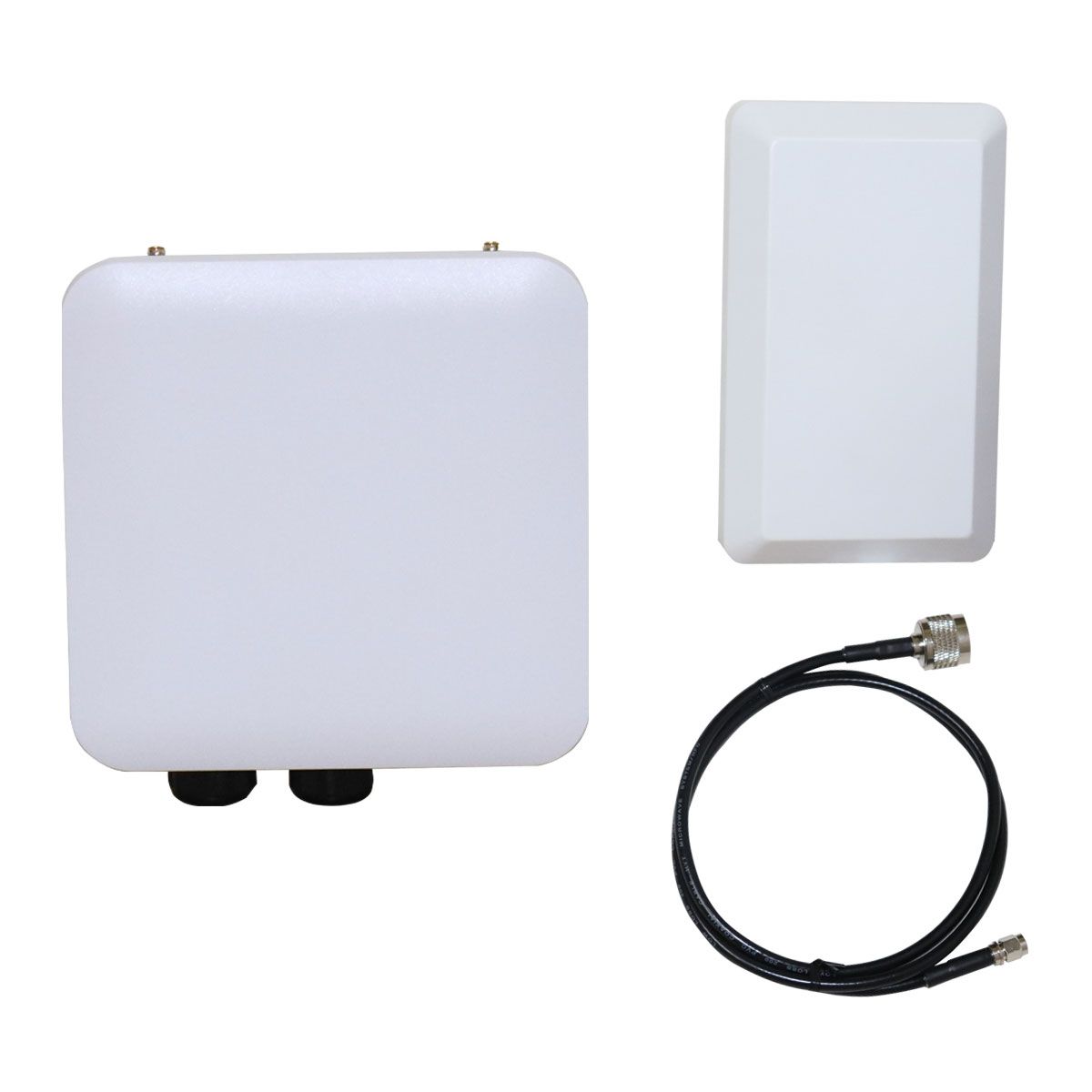

Is a dual-band 802.11ac outdoor access point ideal for providing outdoor Wi-Fi coverage, Point-to-Point and Point-to-multi network.
DUAC201 is compliant with the latest industrial wireless security standards such as 802.1X WPA and WPA
Cost-effective, High-power, Rugged IP68 rating
Dual-polarization to avoid interference
DUAC201 also features multiple ESSIDs with VLAN tags and multiple Virtual Aps.
Standalone per user and per WDS bandwidth management features.
Features multiple ESSIDs with VLAN tags and multiple Virtual APs
360° beamwidth, up to 30-50 meters.
802.11 a/c band 4.9-5.845 GHz global compatibility.
Up to 300 and 867 Mbps data rates in the 2.4 and 5 GHz bands.
Up to 23 dBm in 2.4 GHz and Up to 22 dBm in 5 GHz.
Featuring 2x2 MIMO high-throughput & diversity
Powered by 802.3at .

Specifications

Standards

◈ 802.11 a/b/g/n/ac

◈ Concurrent dual-band 2.4 & 5 GHz

Supported Data Rates

◈ 802.11ac: 6.5 – 173.4 Mbps (20 MHz)

◈ 802.11ac: 13.5 – 400 Mbps (40 MHz)

◈ 802.11ac: 29.3 – 866.6 Mbps (80 MHz)

Radio Chains

◈ 2 x 2

Spatial Streams

◈ 2

RF Output Power *1

◈ 2.4 GHz: Up to 23 dBm*

◈ 5 GHz: Up to 22 dBm*

Channelization

◈ 20MHz, 40MHz, 80MHz

Frequency Band

◈ 2.412–2.472GHz

◈ 5.180–5.825GHz

Operating Channels

◈ 2.4 GHz: 1 – 11 (US), 1 – 13 (Europe), 1 – 13 (Japan)

◈ 5 GHz*3: 36 – 165 (US), 36 – 140 (Europe), 36 – 140 (Japan)

ESSIDs

◈ Up to 16 per radio (32 total)

Certifications

◈ FCC (United States)

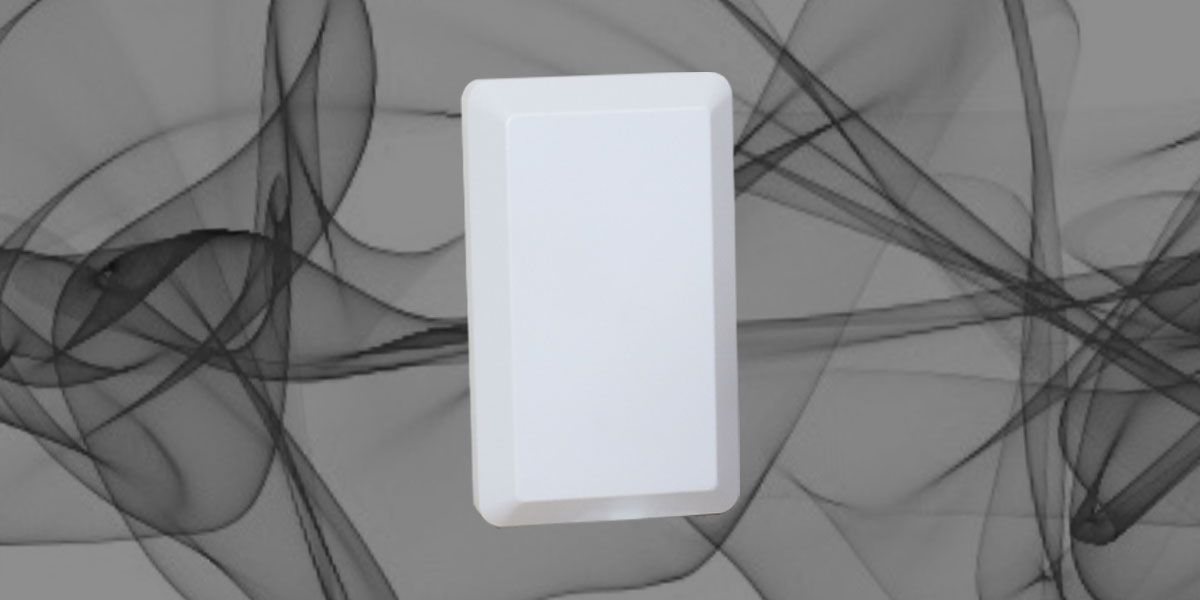

Panel Antenna
ELECTRICAL CHARACTERISTICS

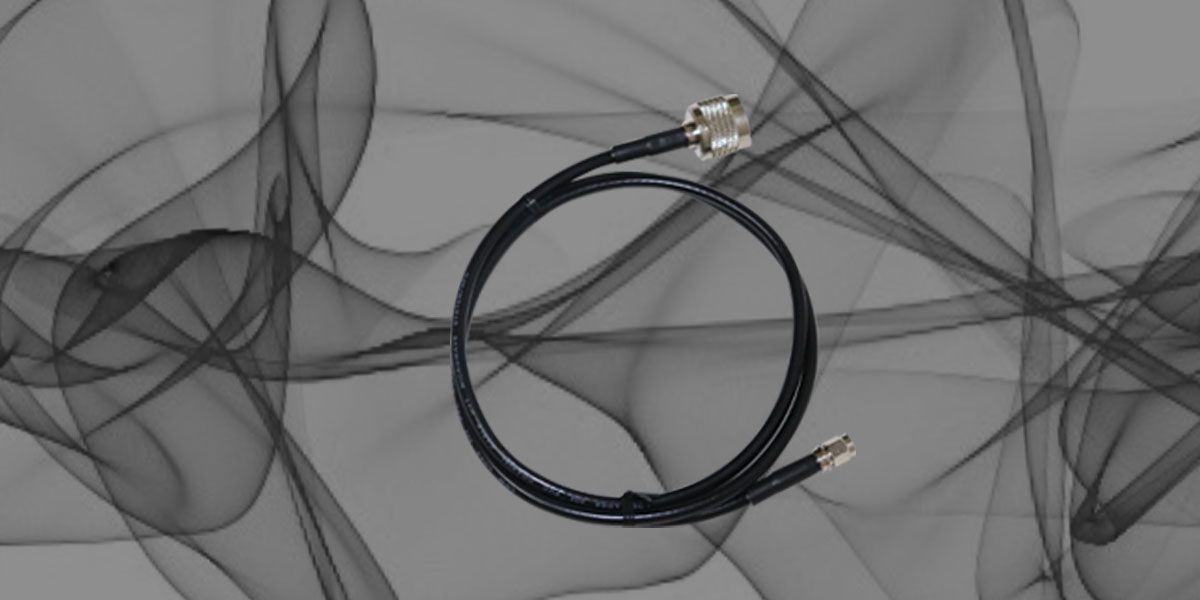

Coaxaial Low Loss Cable

ELECTRICAL CHARACTERISTICS

MECHANICAL CHARACTERISTICS

Pull Test of Connector	≧ 5kg
Mating Cycles	> 500

PHYSICAL
